40G 100G SFP Female To Female MPO MTP Cable 24 Core OM4 MTP Cable

Product Categories
Shenzhen Begate Technology Co.,Ltd.
Contact Now

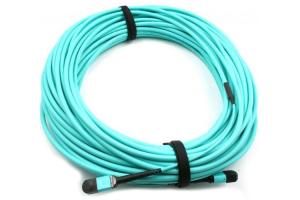

40G 100G SFP Female To Female MPO MTP Cable 24 Core OM4 MTP Cable

  • 1
  • 2
  • 3

Brand Name : Begate, OEM and ODM

Model Number : MPO/MTP trunk cable

Certification : CE,ROHS,ISO9001,IEC and TIA

Place of Origin : Guangdong, China

MOQ : We are the factory. No MOQ, 1piece is ok.

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram, Paypal

Supply Ability : 8000pieces/Day

Delivery Time : Samples within 3 days, bulk orders within 12 working days

Packaging Details : Carton Box or Customized packaging

Fiber type : OM4

Product name : MTP/MPO trunk cable fiber patch cord

Length : Customized Lengths(1m/2m/3m+1

Color : red or customized

Connector type : MPO/MTP/LC/SC/ST/FC fiber patch cord

Application : FTTX

Cable length : customized

Operating temperature : -40 to 75℃

Contact Now

Tested Before Delivery 24core OM4 MTP Female-MTP Female MPO/MTP Trunk Cable

Product Description Of MPO/MTP Trunk Cable

MPO/MTP is the high density of optical fiber pre-connect system which is generally use in three areas.

The data center application with high density environment
The optical fiber to the building
The internal connector application in fiber equipment such as Splitter,

40G / 100G SFP and SFP .

Features Of MPO/MTP Trunk Cable

* High Performance in IL & RL

* 4,8,12 and 24 fiber connector terminations and assemblies

* Designed for low loss and standard loss SM and MM applications

* Economical solution for mass-termination of fiber

* Suitable for MPO/MTP application

* Ruggedized round cable, oval cable and bare ribbon options available

* Color coded housings available to differentiate fiber type, polish type and/or connector grade

Specification Of MPO/MTP Trunk Cable

Connector Type Performance Level
Standard Elite
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC/FC/ST SM PC <=0.2 >=50 <=0.15 >=50
UPC <=0.2 >=55 <=0.15 >=55
APC <=0.2 >=60 <=0.15 >=60
MM PC <=0.2 >=35 <=0.15 >=35
MPO/MTP SM APC <=0.7 >=60 <=0.35 >=60
MM PC <=0.5 >=20 <=0.35 >=20
MTRJ SM PC <=0.5 >=50 / /
MM PC <=0.5 >=35 / /

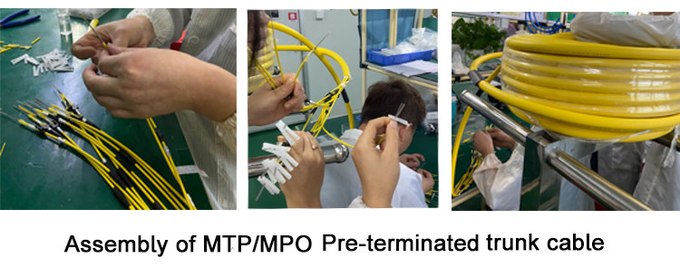

MTP Trunk Cable Assemblies and Drawing

40G 100G SFP Female To Female MPO MTP Cable 24 Core OM4 MTP Cable

40G 100G SFP Female To Female MPO MTP Cable 24 Core OM4 MTP Cable

100% factory tested with traceable test data

40G 100G SFP Female To Female MPO MTP Cable 24 Core OM4 MTP Cable

Begate Fiber’s MPO MTP Patchcords product line has already accumulated more than 12 years experience in mass production. We equipped with Senko’s APC2000 polishing machine , Sumix 3D interferometer and JGR performance test . All patchcords will been tested 100% before shipping. Begate Fiber’s MPO MTP patchcords meet Telcordia GR 1435- core.

Customers` feedback

40G 100G SFP Female To Female MPO MTP Cable 24 Core OM4 MTP Cable

Company information

Shenzhen begate Co., Ltd is located in longhua, Shenzhen. The factory covers an area of 20,000 square meters, and has a complete set of automated production and testing equipments. Begate is specialized in manufacturing of network cables, optical fiber quick connector, fiber optical cables, fiber optic adaptor, fiber optic attenuator, fiber optic splitter, professional plc splitter cassette, fiber optic patch cord, fiber optic splice closure, FTTH series and other products of network cabling system. Our products also covers the fiber media converter, Fiber optic cross connect cabinet and Fiber optic splice closure, etc.
In order to meet more high end market’s needs, we imported REELEX machine from US and got the National High-Tech Enterprise Certification in the same year.
We have passed ISO9001-2008 and ISO14001 certification with excellent management systems.
