3 Meters OFNP 12F MPO MTP Cable OS2 Singlemode Breakout Cord

Product Categories
Shenzhen Begate Technology Co.,Ltd.
Contact Now

3 Meters OFNP 12F MPO MTP Cable OS2 Singlemode Breakout Cord

  • 1
  • 2
  • 3

Brand Name : OEM and ODM

Model Number : MTP MPO to FC APC 12Fiber breakout cable

Certification : CE,ROHS,ISO9001,IEC and TIA

Place of Origin : Made in China

MOQ : We are the professional manufacturer , NO MOQ, 1 piece is ok.

Price : USD 19.99 / piece ~ USD 399.99 / piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal , Cash

Supply Ability : 3000 pieces / day

Delivery Time : Samples within 3 days, bulk orders within 15 working days

Packaging Details : 1 piece / PE bag; 100 pieces / carton

Fiber mode : Single-mode, OS2, 9/125

Connector : MPO MTP - FC/APC

MPO MTP Gender : Male

Fiber Count : 12 Fiber

Breakout Length : 0.5 Meter

Length : 3 Meters

Jacket : Plenum Rated Jacket (OFNP)

Jacket Diameter : 3.0 mm

Warranty : 10 years

Service Life : 20 years

Contact Now

3 Meters OFNP 12F MPO MTP Cable OS2 Singlemode Breakout Cord

MTP MPO to FC APC 12 Fibers Singlemode Breakout Cable Patch cord

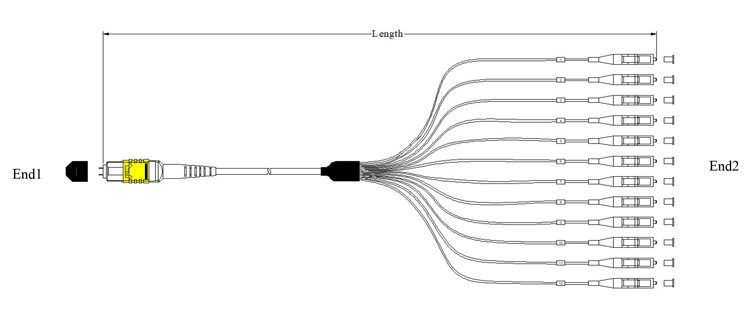

This Singlemode MTP to FC/APC Fanout Cable uses a Singlemode 9/125 fiber and features a Yellow, Plenum Jacket (OFNP). The fanout side has 12 FC/APC simplex connectors and is numbered in accordance with the corresponding fiber position in the MTP connector.

Features of MTP MPO to FC APC 12 Fibers SM Breakout Cable

  1. Connector A: MTP MPO, Male (Pins)
  2. Connector B: FC/APC
  3. 12 Fibers
  4. Cable is 3mm Round Microdistribution to 2mm on the Breakout side 0.5 Meter Breakout Length
  5. Plenum Rated Jacket (OFNP)Small volume,
  6. high fiber density
  7. 4,8,12,24 cores available
  8. PC(plane) and APC(8) are available
  9. Both direct and crosspatch cords are available
  10. 100% factory terminated and tested.

Specifications of MTP MPO to FC APC 12 Fibers SM Breakout Cable

3 Meters OFNP 12F MPO MTP Cable OS2 Singlemode Breakout Cord

MPO MTP termination technical specification:

Optical Properties Single mode Multimode
Insertion Loss (dB) Low loss Standard Low loss Standard
≤0.35(Typical:≤0.25) ≤0.75(Typical:≤0.4) ≤0.35(Typical:≤0.2) ≤0.5(Typical:≤0.35)
Return Loss (dB) PC≥50; APC≥60 PC≥20; APC≥40
Wavelength (nm) 1310/1550 850/1300
Durability ≤0.3 (dB)typical change, 50 matings

Fan-out termination technical specification:

Optical Properties Single mode Multimode
Insertion Loss (dB) ≤0.2 ≤0.2
Return Loss (dB) PC≥55; APC≥60 PC≥25
Wavelength (nm) 1310/1550 850/1300
Durability ≤0.2(dB)typical change, 500 matings

Why Choose Begate MPO MTP harness fanout cable?

100% factory tested with traceable test data

3 Meters OFNP 12F MPO MTP Cable OS2 Singlemode Breakout Cord

3 Meters OFNP 12F MPO MTP Cable OS2 Singlemode Breakout Cord

Feedback from Customers

3 Meters OFNP 12F MPO MTP Cable OS2 Singlemode Breakout Cord

FAQ

Q1: Are you a manufacturer?
A: Yes, we are a manufacturer who has 3 factories and welcome to visit!
Q2: What is your MOQ?
A: We are the factory. No MOQ, One piece is available.
Q3:Can you provide the OEM service?
A: Sure, we have the complete production line, we could do the production as your request.
Q4. Can I have a sample order for this product?
A: Yes, for patchcord, FREE SAMPLE is avaible to test and check quality. Mixed samples are acceptable.
Q5: How long is your delivery time?
A: Generally it is 2-5days if the goods are in stock. or it is 7-15 days if the goods are out of stock. The lead time mainly depends on quantity.
Q6: Can I negotiate the prices?
A:Yes, special discounts are available. The more quantities, the cheaper prices.
Q7: How much will the shipping charges be?
A:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as per you requested.

Any more questions?

Our informative and experienced representatives are ready to assist you with any questions that you might have, regarding your fiber optic network. We offer a superior selection of quality products as well as competitive pricing to help get your project completed and under budget. Thank you for visiting our website!

3 Meters OFNP 12F MPO MTP Cable OS2 Singlemode Breakout Cord
