RoHS Fiber Optic PLC Splitter 1x32 SC APC Splitter LGX Cassette FTTH

Product Categories
Shenzhen Begate Technology Co.,Ltd.
Contact Now

RoHS Fiber Optic PLC Splitter 1x32 SC APC Splitter LGX Cassette FTTH

  • 1
  • 2
  • 3

Brand Name : OEM

Model Number : LGX Box PLC Splitter 1x32 SC APC

Certification : CE/RoHS/ISO9001

Place of Origin : Shenzhen, China

MOQ : We are the factory. No MOQ, 1piece is ok.

Price : Negotiable

Payment Terms : PayPal, T/T, Western Union, L/C, D/A, D/P, MoneyGram

Supply Ability : 800000 Piece/Pieces per Month

Delivery Time : Samples within 3 days, bulk orders within 15 working days

Packaging Details : Packed in carton box

Product name : LGX PLC Splitter, Fiber Optic PLC Splitter 1X32 LGX BOX PLC Splitter

Material : PV, ,PVC option,fiber,connector,LSZH

Type : Single Mode,1*2/1*4/1*8/1*16/1*32/1*64,1x32,rackmount type,Mini 2x8 plc optical splitter

Application : FTTH FTTB FTTX PON CATV,FTTX Systems/PON Networks/CATV Links/Optical Signal Distribution,LAN,CATV Metro,Networking

Fiber type : G.657A with 0.9mm lose tube,Single Mode,G657,0.9mm or 250um bare

Operating temperature : -40~+85℃,-40℃ to 85℃,0~70 C

Connector : SC/UPC, SC/APC, No connector,SC/LC/FC/ST,FC SC LC ST

Item : high quality plc splitters fiber spliter, LGX Box Plc Splitter

Contact Now

Fiber Optic PLC Splitter 1x32 SC APC PLC Splitter LGX Box Cassette FTTH

Product Description of Fiber Optic Plc Splitter:

The PLC (Planar Lightwave Circuit) planar waveguide optical splitter is composed of an optical
waveguide chip and optical fiber arrays coupling at both ends. This product uses semiconductor lithography technology to manufacture the optical splitter chip, with stable process, good output consistency, loss and optical wavelength Irrelevant, good channel uniformity, compact structure and small size, widely used in optical fiber communication lines of telecom operators, especially FTTX projects.

Features of Fiber Optic Plc Splitter:

1. Loss is not sensitive to the wavelength of light, and can meet the transmission needs of different wavelengths.

2. The light is evenly distributed, and the signal can be evenly distributed to users.
3. The structure is compact and the volume is small, it can be directly installed in the existing various transfer boxes without leaving a large installation space.
4. There are many shunt channels for a single device, which can reach more than 32 channels.
5. Wide operating wavelength
6. Low insertion loss
7. Low polarization-dependent loss
8. Good consistency between channels
9. High reliability and stability
10. RoHS compliant
11. Can provide different types of connectors according to customer needs, fast installation, reliable performance

Applications of Fiber Optic PLC Splitter:

1. Fiber to the point (FTTX)
2. Fiber to the home (FTTH)
3. Passive optical networks(PON)
4. Local area networks (LAN)
5. Cable television (CATV)
6. Test equipment

RoHS Fiber Optic PLC Splitter 1x32 SC APC Splitter LGX Cassette FTTH

Specification of Fiber Optic PLC Splitter:

1.

Product Size
Model 1*2/4/8 1*16 1*32 1*64
Bare fiber (250umfiber ) 4*4*40 4*7*50 4*7*50 4*12*60
Mini type(0.9mm loose) 4*7*60 4*12*60 6*20*80 6*40*100
ABS Box(2.0mm) 10*20*90 18*80*120 18*80*120 18*115*141
10*80*100
Slot-Box 130*100*25 130*100*50 130*100*102 130*100*206
Rock Mounted(19’Inch) 483*44.5*200 483*44.5*200 483*44.5*200 483*89*200

2.

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(Min/Max) 3.8/4.0 7.2/7.4 10.5/10.7 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) 55 55 55 55 55 55
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) 55 55 55 55 55 55
Operating Temperature (℃) -40～+85
Storage Temperature (℃)) -40～+85
Operating Humidity 5% ~ 85% RH
Storage Humidity 5% ~ 85% RH
Device Dimension (mm) (L×W×H) 40×4×4 40×4×4 40×4×4 50×4×4 50×7×4 60×12×4
Module Dimension (mm) (L×W×H) 100×80×10 100×80×10 100×80×10 120×80×18 140×115×18 140×115×18
Mini-Module Dimension (mm) (L×W×H) 50×7×4 50×7×4 60×7×4 60×12×4 80×20×6 N/A

Factory Workshop:

RoHS Fiber Optic PLC Splitter 1x32 SC APC Splitter LGX Cassette FTTH

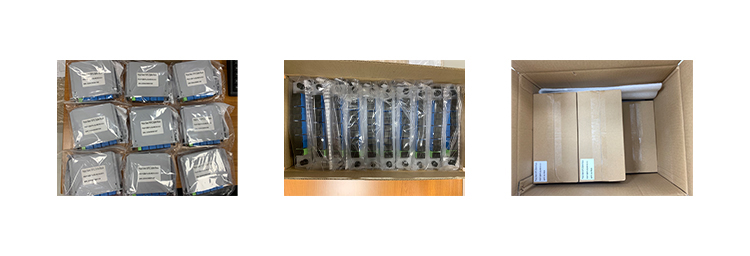

Packaging:

RoHS Fiber Optic PLC Splitter 1x32 SC APC Splitter LGX Cassette FTTH

Customers` feedback:

RoHS Fiber Optic PLC Splitter 1x32 SC APC Splitter LGX Cassette FTTH

Why choose Begate?

1. Own factory. We can save your money(Factory-sale),
2. Strong R&D ability
3. Strictly quality control with Reliable quality(2years warranty),
4. Fast delivery(within 7days)
5. No MOQ (1piece okay)
6. Credit supports.
7. Customization(Print your logo).
8. Free sample
9. One-stop procurement of products in the telecommunication industry can be achieved.
10. High efficient and professional sales and aftersales services, care bout partners benefits and win-win situation.

Thank you very much for browsing our website and welcome your inquiry. Any more questions? please feel free to contact us now.
We will serve you wholeheartedly.
