MPO 24 Fiber Optic Cassette 2 x MPO 12 Fiber LC Multimode OM3
Overview of MPO Fiber optic cassette
Begate MPO Fiber Optic Cassette Module is designed for the secure transition between MPO and LC discrete connectors. It’s suitable for high-density backplane and data center cabling which offers excellent benefits in terms of on-site installation time and space saving. This Fiber Optic Cassette Module kit includes two pre-terminated MPO to 12 x LC multimode 10G OM3 fiber optic harness cable, two MPO adapter in back, 6 x LC quad adapters in the front and the cassette module that the fiber is routed and connected inside of it. The MPO cassette module is built with high-quality components to ensure overall network reliability. This compact and modular MPO cassette module provide you a quick, reliable, high performance and efficient way to deploy up to 6 x LC quad fiber ports pairs in a single module, allowing for maximum density in limited spaces. The cassette module can be mounted in 1U, 2U, 3U or 4U 19” multi-slot MPO/MTP® fiber panel or enclosure.
Features of MPO Fiber optic cassette
- Factory-terminated provide consistent quality, high performance and reduce installation time
- 100% tested for low insertion loss performance and high return loss
- Simplifies cable management and allows for higher density
- Cassettes can be easily mounted on the patch panel, designed for MPO/MTP ultra high-density panel system
- Laser-Optimized multimode 10G OM3 fiber
- Dual MPO adapter, male (with pins)
- 6x Quad LC adapters in the front, 24 Fiber
- RoHS Compliant
Technical specification of MPO Fiber optic Cassette
| Fiber Type | 50/125µm Multimode OM3 | Fiber Count | 24-Fiber |
| Connector Type | Front: 6 Quad LC, Rear: 2 MPO Male | Polish | PC to PC |
| Dimensions (WxDxH) | 130×112×30mm | Test Wavelength | 850 nm |
| Insertion Loss | MPO≤0.6dB, LC≤0.3dB | Return Loss | ≥20dB |
| Polarity | Type A | Durability | ≥500 times |
| Jacket Material | PVC | Jacket Color | N/A |
| Environment | Operating: -20°C to 70°C | Application | Data Centre Infrastructure |
| Storage: -40°C to 85°C | Fiber Optic Network Infrastructure |
| High Density Fiber Management |
Detailed photos show of MPO Fiber optic cassette

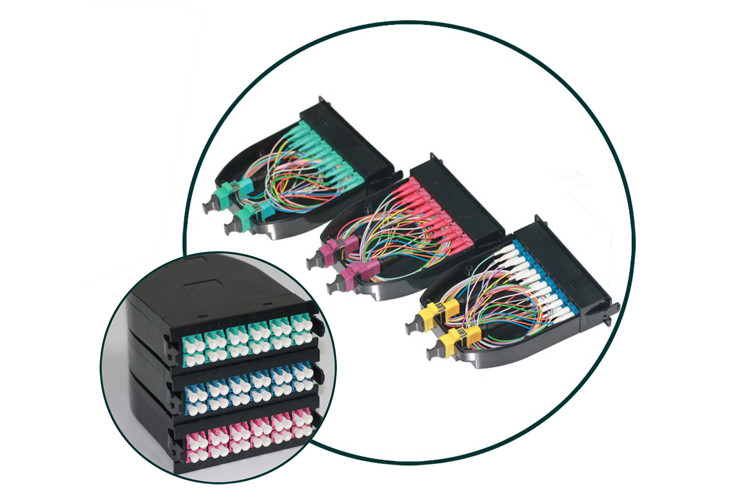

Inside structure
Production line of MPO Fiber optic cassette
"Quality is our culture!"
We are dedicated to providing customers with the outstanding, standards-compliant products and services.
Begate has passed ISO9001 quality system verification, and our products are approved by CE, RoHS. Compliant with IEC and TIA requirement. We established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.

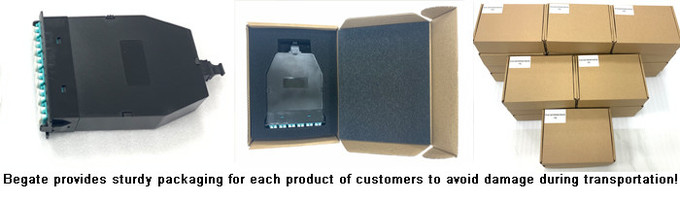

Packaging and delivery of MPO Fiber optic cassette
Every cooperation is a kind of trust, Begate cares about the issues that our customers care about.
While ensuring product quality, we provide customers with safe packaging, so that the goods can be delivered to customers in good condition.
Question: How long is shipping take typically?
Reply: The delivery time depends on the goods quantities. If light weight, by express (DHL, FEDEX, TNT, UPS, Special line) will take about 10-15days, if large quantities with big volume, and goods are not in urgently needed, by ocean transportation will be more cost effective, it will take around 30-60days.
Ordering information of MPO Fiber optic cassette
MPO Fiber Optic Cassette, 2 x MPO-12 Male to 6 x Quad LC, 50/125 Multimode OM3, 24 Fiber, PC Polish
More questions?
Our informative and experienced representatives are ready to assist you with any questions that you might have, regarding your fiber optic network. We offer a superior selection of quality products as well as competitive pricing to help get your project completed and under budget.
Thank you for visiting our website!
Product Tags:
|
|
24 Fiber Optic MPO MTP Cassettes 2 X MPO 12 Fiber LC Multimode OM3 Images
|
